SIIG, INC.
EASYVGA
|
Card Type |
Video |
|
Video Chip Set |
Trident |
|
Maximum Video Memory |
512KB DRAM |
|
Data Bus |
16-bit ISA |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1024 x 768 |
|

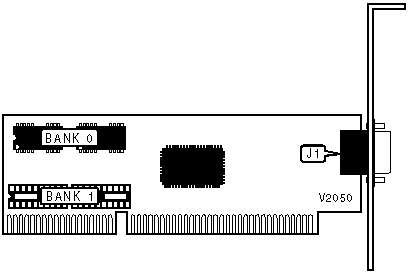

CONNECTIONS | |
|
Function |
Label |
|
VGA port - 15-pin |
J1 |
|
DRAM | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(2) 256KB x 4 |
NONE |
|
512KB |
(2) 256KB x 4 |
(2) 256KB x 4 |
|
|
|
|
 |
|
