AURORA 4000 PCI video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SIIG, INC.
AURORA 4000 PCI
|
Card Type |
Video |
|
Video Chip Set |
S3 Trio64V+ |
|
Maximum Video Memory |
4MB EDO DRAM |
|
I/O Options |
VESA feature connector, Local Peripheral Bus |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
VGA port - 15-pin |
CN1 |
LPB extension to VESA connector |
CN2B |
|
VESA feature connector |
CN2A |
Unidentified |
CN3 |
|

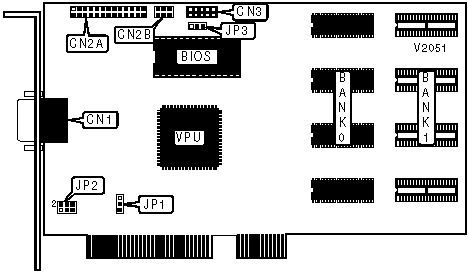

USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Board does not use IRQ2/9 |
JP1 |
Pins 2 & 3 closed |
|
|
Board uses IR/FONT |
JP1 |
Pins 1 & 2 closed |
|
» |
VGA BIOS enabled |
JP3 |
Pins 2 & 3 closed |
|
|
VGA BIOS disabled |
JP3 |
Pins 1 & 2 closed |
|
DRAM |
||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(4) 256K x 16 |
NONE |
|
4MB |
(4) 256K x 16 |
(4) 256K x 16 |
|
DDC (PLUG-AND-PLAY) |
||
|
Setting |
JP2 |
|
|
» |
Enabled |
Pins 1 & 3, 2 & 4 closed |
|
|
Disabled |
Pins 3 & 5, 4 & 6 closed |
|
|
|
|
 |
|
