SIIG, INC.
AURORA 2000 PCI
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|

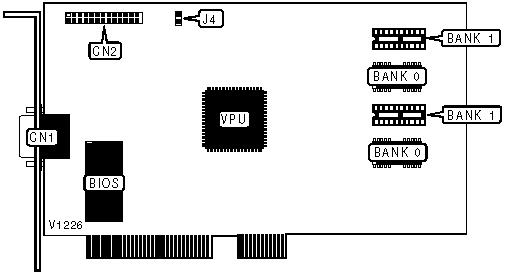

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
SCAN RATE CONFIGURATION |
||
|
Rate |
J4 |
|
|
» |
Interlaced ( < 48.7 KHz) |
Closed |
|
|
Non-interlaced ( ³ 48.7 KHz) |
Open |
|
DRAM CONFIGURATION |
||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 1024K x 4 |
None |
|
2MB |
(2) 1024K x 4 |
(2) 1024K x 4 |
|
|
|
|
 |
|
