MGP III video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / S-T / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
MGP III video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
SIIG, INC.
MGP III
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus |
8-bit ISA |
|

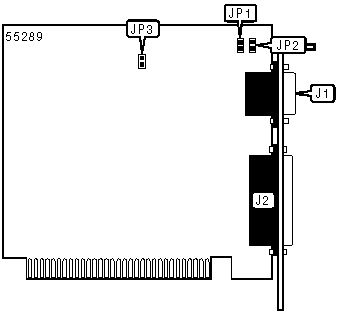

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
9-pin analog video port |
J1 |
Parallel port |
J2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
JP3 |
Unidentified |
|
PRINTER PORT SELECTION | ||
|
Address |
JP1 |
JP2 |
|
3BCh |
Open |
Open |
|
378h |
Closed |
Open |
|
278h |
Open |
Closed |
|
Disabled |
Closed |
Closed |
|
|
|
|
 |
|
