PROLINK COMPUTER, INC.
MVGA-CL546XP
|
Card Type |
Video |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Video Memory |
4MB RDRAM |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

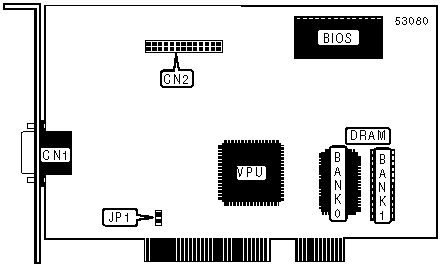

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
INTA enabled |
JP1 |
Closed |
|
INTA disabled |
JP1 |
Open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
2MB |
None |
|
4MB |
2MB |
2MB |
|
Note:The size of memory chips is unidentified. | ||
|
|
|
|
 |
|
