PV-I1740III video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / P-R / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PV-I1740III video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PROLINK COMPUTER, INC.
PV-I1740III
|
Card Type |
Video capture board |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
8MB SDRAM |
|
Video Types Supported |
Monochrome, CGA, EGA, VGA, XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
64-bit PCI |
|

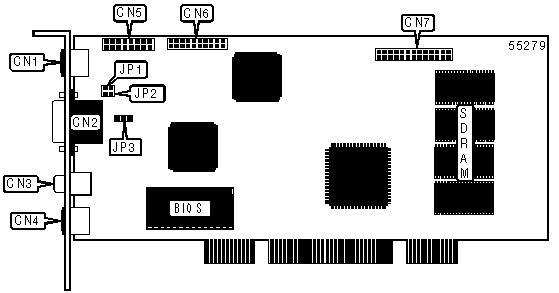

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
S-video/audio cable connector |
CN1 |
DTV-camera |
CN5 |
|
VGA connector |
CN2 |
Tuner connector |
CN6 |
|
Composite video out |
CN3 |
Feature connector |
CN7 |
|
S-video out |
CN4 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
NTSC |
JP3 |
Pins 1 & 2 closed |
|
PAL |
JP3 |
Pins 2 & 3 closed |
|
DDC SELECTION | ||
|
Function |
JP1 |
JP2 |
|
DDC enabled |
Closed |
Closed |
|
DDC disabled |
Open |
Open |
|
|
|
|
 |
|
