PROGEN TECHNOLOGY, INC.
GOLD 64V+ PCI (V.1.1)
|
Card Type |
Video |
|
Chip Set |
S3, Inc. Trio64V+ |
|
Maximum Onboard Memory |
2MB DRAM (EDO) |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|

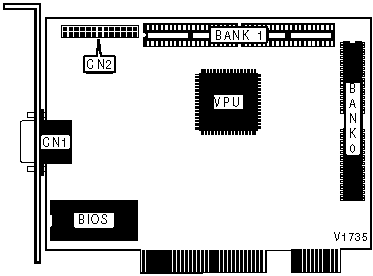

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Video feature connector |
CN2 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
NONE |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
|
|
|
|
 |
|
