POSITIVE CORPORATION

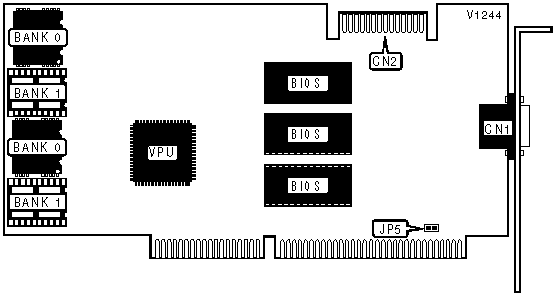

VGA DISPLAY CARD
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Unidentified |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1MB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT CONFIGURATION | |
|
IRQ 2/9 |
JP5 |
|
Enabled |
Closed |
|
Disabled |
Open |
|
DRAM CONFIGURATION | ||
|
Memory |
Bank 0 |
Bank 1 |
|
512KB |
(4) 256K x 4 |
None |
|
1MB |
(4) 256K x 4 |
(4) 256K x 4 |
|
|
|
|
 |
|
