ULTRA CLIPPER/MCA (UM1280), ULTRA CLIPPER/MCA (UM1024) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PIXELWORKS, INC.
ULTRA CLIPPER/MCA (UM1280), ULTRA CLIPPER/MCA (UM1024)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Pixelworks, Inc.(exact location unidentified) |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
(2) 16-bit MCA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1.5MB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Daughterboard connector |
CN3 & CN4 |
|
FACTORY CONFIGUERD - DO NOT ALTER | |
|
Switch |
Position |
|
SW1/1 |
On |
|
SW1/2 |
Off |
|
SW1/3 |
Off |
|
SW1/4 |
Off |
|
CONNECTIONS | |
|
Purpose |
Location |
|
VGA pass-through port |
CN2 |
|
MONITOR SYNC MODE SELECTION | |||||
|
» Mode |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 | |
| » |
3 |
On |
On |
Off |
Off |
| » |
4 |
On |
Off |
Off |
Off |
| » |
5 |
Off |
Off |
On |
Off |
|
MISCELLANEOUS TECHNICAL NOTE |
|

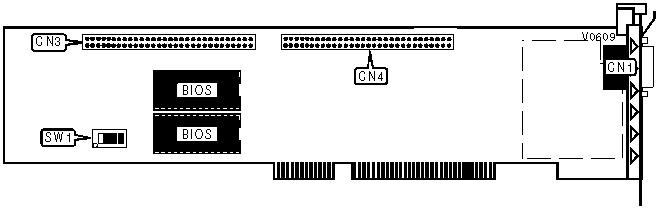

These two cards are attached at the corners and must be installed in two adjacent slots simultaneously. When viewed from the backplate end, the card on the left is the card pictured above. |
|
|
|
|
 |
|
