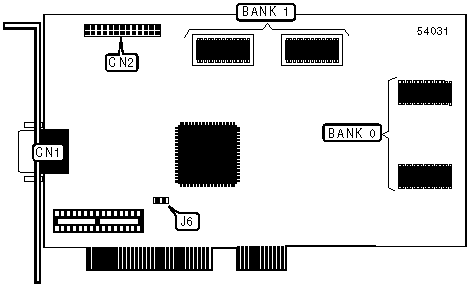

PT-580 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / P-R / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PT-580 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
PINE TECHNOLOGY
PT-580
|
Card Type |
Video card |
|
Video Chip Set |
IGS |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector (VGA) |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IRQ 9 disabled |
J6 |
Open |
|
IRQ 9 enabled |
J6 |
Closed | |
|
DRAM CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 | |
| » |
1 MB |
(2) 512 KB |
None |
|
2 MB |
(2) 512 KB |
(2) 512 KB | |
|
|
|
|
 |
|
