PCWARE INTERNATIONAL, INC.
UM85C408
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
UMC |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1024KB |
|

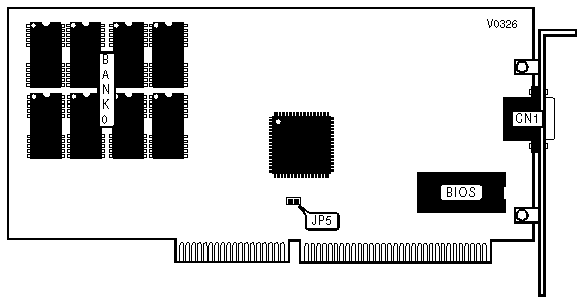

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
INTERRUPT CONFIGURATION | ||
|
IRQ2 |
JP5 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
|
|
|
 |
|
