MATROX GRAPHICS, INC.
PULSAR
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
MGA 2064W |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
WRAM |
|
Maximum Onboard Memory |
4MB |
|

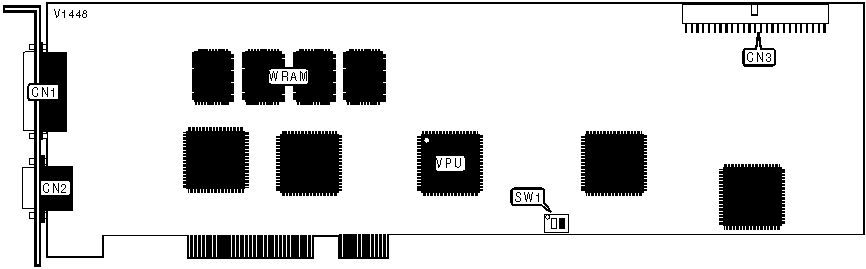

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Analog video port - in |
CN1 |
50-pin digital interface connector |
CN3 |
|
15-pin analog video port - out |
CN2 | ||
|
BIOS CONFIGURATION | ||
|
Setting |
SW1/1 | |
| » |
Protected |
Off |
|
Unprotected |
On | |
|
VGA CONFIGURATION | ||
|
Setting |
SW1/2 | |
| » |
Enabled |
Off |
|
Disabled |
On | |
|
|
|
|
 |
|
