KW-549A video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / I-L / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
KW-549A video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
KOUWELL ELECTRONIC CORPORATION
KW-549A
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
4MB |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin video analog video port |
J1 |
Feature connector |
J3 |
|

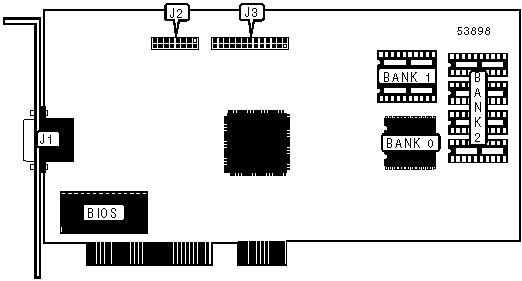

USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured – do not alter |
J2 |
Unidentified |
|
VIDEO MEMORY CONFIGURATION | |||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
|
1MB |
(2) 256K x 16 |
None |
None |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
None |
|
4MB |
(2) 256K x 16 |
(2) 256K x 16 |
(4) 256K x 16 |
|
Note: Bank 0 is factory installed and is not configurable. | |||
|
|
|
|
 |
|
