KOUWELL ELECTRONIC CORPORATION
KW-546
|
Card Type |
Video card |
|
Video Chip Set |
ET |
|
Maximum Video Memory |
4MB |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|

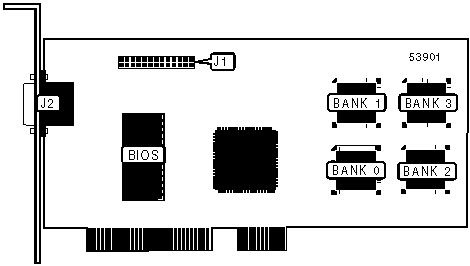

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
J1 |
15-pin video analog video port |
J2 |
|
VIDEO MEMORY CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
MD908 |
None |
None |
None |
|
2MB |
MD908 |
MD908 |
None |
None |
|
2.25MB |
MD909 |
MD909 |
None |
None |
|
2.5MB |
MD910 |
MD910 |
None |
None |
|
4MB |
MD908 |
MD908 |
MD908 |
MD908 |
|
Note: MD908 = 1MB. MD909 = 1.125MB. MD910 = 1.25MB. | ||||
|
|
|
|
 |
|
