JAZZ MULTIMEDIA, INC.
JAMMIN DVD II ADAPTER
|
Card Type |
Video card |
|
Video Chip Set |
C-Cube/AuraVision |
|
Maximum Video Memory |
20MB DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
720 x 480 |
|
Data Bus |
32-bit PCI |
|

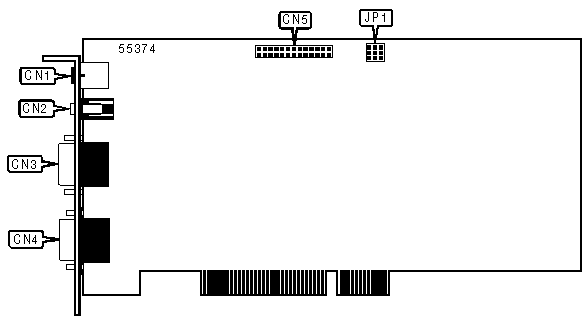

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Speaker/Line out |
CN1 |
15-pin analog video port |
CN4 |
|
Optical S/PDIF connector |
CN2 |
Feature connector |
CN5 |
|
Multi-cable connector |
CN3 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1 |
Open |
|
|
|
|
 |
|
