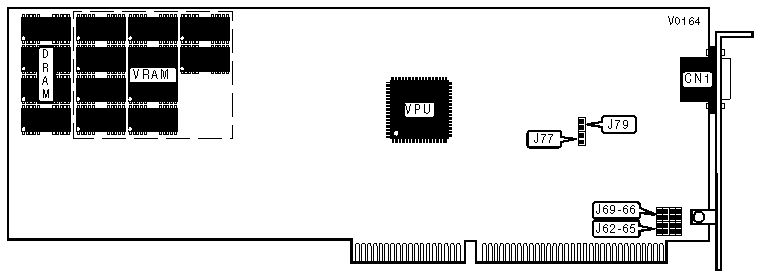

TI-1210-4 (REVISION B & EARLIER) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
IMAGRAPH CORPORATION
TI-1210-4 (REVISION B & EARLIER)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
TMS34010 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM/VRAM |
|
Maximum Onboard Memory |
512KB DRAM, 1536KB VRAM |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video connector |
CN1 |
|
BASE ADDRESS SELECTION | |||||||||
|
Address |
J62 |
J63 |
J64 |
J65 |
J66 |
J67 |
J68 |
J69 | |
| » |
C700h |
Open |
Open |
Closed |
Closed |
Open |
Open |
Open |
Closed |
|
CC00h |
Open |
Open |
Closed |
Closed |
Closed |
Closed |
Open |
Open | |
|
CF00h |
Open |
Open |
Closed |
Closed |
Open |
Open |
Open |
Open | |
|
D700h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed | |
|
DF00h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
EMULATION SELECTION | |||
|
Setting |
J77 |
J79 | |
| » |
Enabled |
Open |
Open |
|
Disabled |
Closed |
Open | |
|
|
|
|
 |
|
