GA video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ICL
GA
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
ATI 28800-6 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM/VRAM |
|
Maximum Onboard Memory |
512KB/1MB |
|

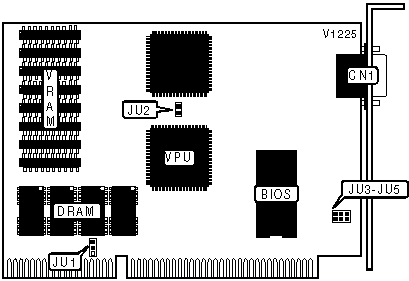

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
COPROCESSOR BUS SELECTION | ||
|
Setting |
JU1 | |
| » |
16-bit |
Pins 1 & 2 closed |
|
8-bit |
Pins 2 & 3 closed | |
|
MEMORY CONFIGURATION | |
|
Setting |
JU2 |
|
512KB |
Closed |
|
1MB |
Open |
|
Note: The GA adapter is shipped with 1MB of memory, so it is not necessary to switch between memory size. | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Jumper |
Position |
|
JU3 |
Open |
|
JU4 |
Open |
|
JU5 |
Open |
|
|
|
|
 |
|
