PII-143CV3 GRAPHICSMITH (EDIT.1.01 & 1.02) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DTK COMPUTER, INC.
PII-143CV3 GRAPHICSMITH (EDIT.1.01 & 1.02)
|
Card Type |
Parallel card, Video card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
None |
|
I/O Options |
parallel port |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
720 x 348 |
|

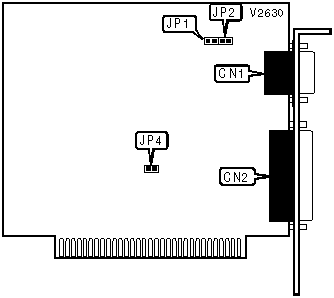

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Monochrome display port |
CN1 |
Parallel port |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
IRQ7 enabled |
JP4 |
Closed |
|
IRQ7 disabled |
JP4 |
Open |
|
PARALLEL PORT SELECTION | ||
|
Setting |
JP1 |
JP2 |
|
Disabled |
Closed |
Closed |
|
LPT1 |
Open |
Open |
|
LPT2 |
Closed |
Open |
|
|
|
|
 |
|
