DTK COMPUTER, INC.
PII-143CV2
|
Category |
Video |
|
Video Types Supported |
Monochrome |
|
Video Processor |
DT3088 |
|
Highest Resolution Supported |
720 x 348 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|

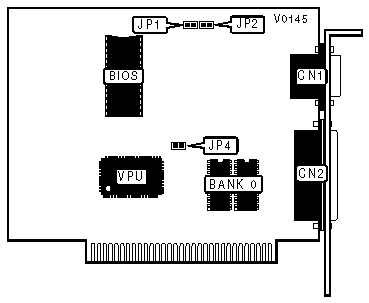

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Monochrome video port |
CN1 |
Parallel port |
CN2 |
|
PARALLEL PORT CONFIGURATION | |||
|
LPT |
JP1 |
JP2 | |
| » |
1 |
Open |
Open |
|
2 |
Closed |
Open | |
|
Disabled |
Closed |
Closed | |
|
PARALLEL PORT INTERRUPT SELECTION | ||
|
IRQ7 |
JP4 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
|
|
|
 |
|
