DOOIN ELECTRONICS
MEDIACAMP V
|
Card Type |
Video card/TV Tuner card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
4MB SGRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

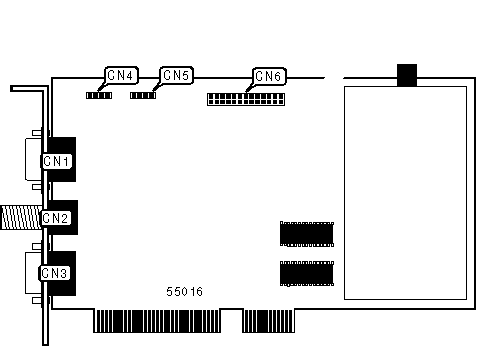

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
A/V port |
CN1 |
Line in |
CN4 |
|
Antenna port |
CN2 |
Line out |
CN5 |
|
VGA port |
CN3 |
DVD board interface |
CN6 |
|
|
|
|
 |
|
