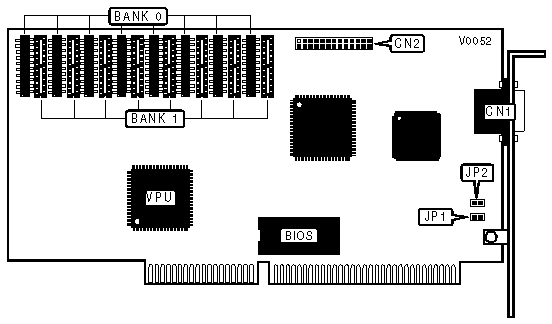

DIAMOND MULTIMEDIA SYSTEMS, INC.
STEALTH PRO
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 89C928 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2048KB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
INTERRUPT SELECTION | ||
|
IRQ 2/9 |
JP1 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
ZERO WAIT STATE SELECTION | ||
|
Setting |
JP2 | |
| » |
Enabled |
Closed |
|
Disabled |
Open | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Jumper |
Position |
|
JP3 |
N/A |
|
VRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1024KB |
(8) 256K x 4 ZIP |
None |
|
2048KB |
(8) 256K x 4 ZIP |
(8) 256K x 4 ZIP |
|
|
|
|
 |
|
