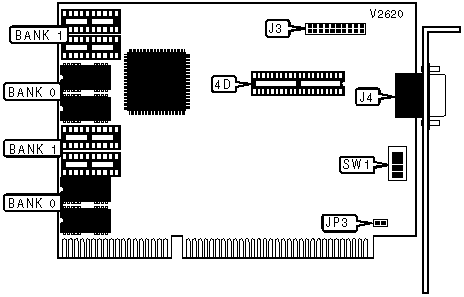

SPEEDSTAR SUPER VGA video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB RAM (type unidentified)
Data Bus	16-bit ISA
Video Types Supported	XVGA

CONNECTIONS
Function	Label	Function	Label
Feature connector	J3	DAC socket	4D
15-pin analog video port	J4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ2 enabled	JP3	On
	IRQ2 disabled	JP3	Off
»	Bus timing normal	JP7	Off
	Bus timing alternate	JP7	On
»	16-bit BIOS enabled	SW1/3	On
	8-bit BIOS enabled	SW1/3	Off
»	Turbo BIOS selected	SW1/4	On
	Normal BIOS selected	SW1/4	Off
Note: The location of JP7 is unidentified.

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 256KB x 4	None
1MB	(4) 256KB x 4	(4) 256KB x 4

DISPLAY MEMORY SPEED CONFIGURATION
Speed		SW1/1	SW1/2
»	Turbo	On	On
	Normal	Off	Off
