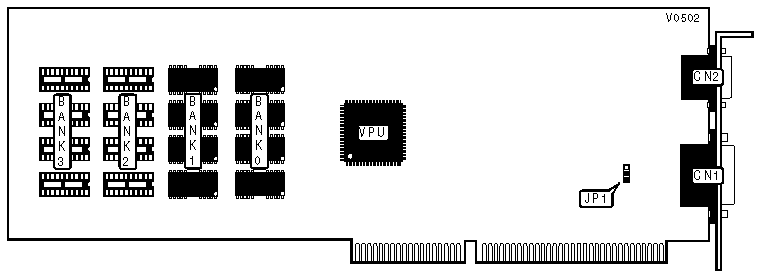

WG-5000P video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / C-D / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
WG-5000P video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIAMOND FLOWER, INC.
WG-5000P
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Tseng Laboratories |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Image Port connector |
CN1 |
15-pin analog video port |
CN2 |
|
INTERRUPT REQUEST | ||
|
IRQ9 |
JP1 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed | |
|
VIDEO MEMORY CONFIGURATION | |||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 | |
| » |
1MB |
(4) 256K x 4 |
(4) 256K x 4 |
NONE |
NONE |
|
2MB |
(4) 256K x 4 |
(4) 256K x 4 |
(4) 256K x 4 |
(4) 256K x 4 | |
|
|
|
|
 |
|
