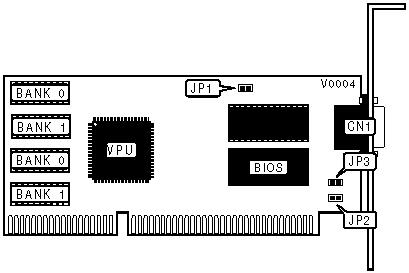

DIAMOND FLOWER, INC.
VG-7700
|
Category |
Video |
|
Video Types Supported |
Monochrome/VGA/XVGA |
|
Video Processor |
OTI067 |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus Type |
16-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
512KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
REFRESH RATE CONFIGURATION | |
|
Rate |
JP1 |
|
72Hz |
Closed |
|
60Hz |
Open |
|
MONITOR TYPE CONFIGURATION | |
|
Type |
JP2 |
|
Mono VGA |
Closed |
|
Color VGA |
Open |
|
DISPLAY MODE CONFIGURATION | |
|
Mode |
JP3 |
|
Interlaced |
Closed |
|
Non-Interlaced |
Open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
256KB |
(2) 44256 |
None |
|
512KB |
(2) 44256 |
(2) 44256 |
|
|
|
|
 |
|
