MONO/GRAPHIC/PRINTER CARD video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIAMOND FLOWER, INC.
MONO/GRAPHIC/PRINTER CARD
|
Card Type |
Parallel card, Video card |
|
Chip Set |
Unidentified |
|
Maximum Onboard Memory |
64KB DRAM (location unidentified) |
|
I/O Options |
Parallel port, Monochrome port |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
720 x 348 |
|

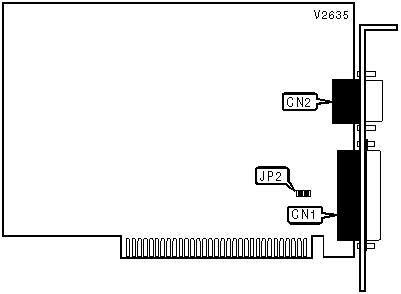

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Parallel printer port |
CN1 |
Analog video port |
CN2 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
IC8 (UM2301) selected |
JP1 |
Open |
|
ICX (2764) selected |
JP1 |
Closed |
|
Printer port disabled |
JP2 |
Open |
|
Printer port enabled |
JP2 |
Closed |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Note: The location of JP1 is unidentified. |
|
|
|
|
 |
|
