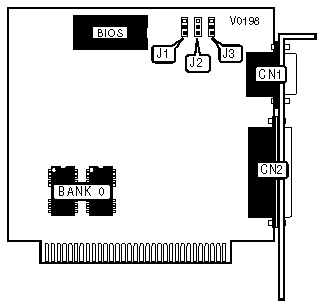

MG-150 MONOGRAPHICS CARD video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DIAMOND FLOWER, INC.
MG-150 MONOGRAPHICS CARD
|
Category |
Graphics/printer card |
|
Video Types Supported |
Monochrome |
|
Video Processor |
N/A |
|
Highest Resolution Supported |
640 x 200 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
64KB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Parallel port |
CN2 |
|
DISPLAY CONFIGURATION | ||
|
Type |
J3 | |
| » |
Monochrome |
Pins 2 & 3 closed |
|
Color |
Pins 1 & 2 closed | |
|
PARALLEL PORT SELECTION | |||
|
Setting |
J1 |
J2 | |
| » |
Primary |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Secondary |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
|
|
|
 |
|
