DIAMOND FLOWER, INC.
CPG-300
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
640 x 200 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
CGA |
|

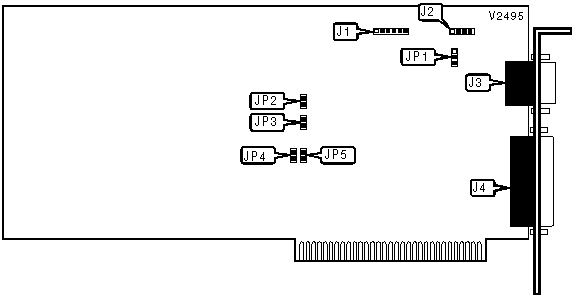

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Light pen connector |
J1 |
9-pin analog video port |
J3 |
|
RF modulator interface |
J2 |
Parallel port |
J4 |
|
USER CONFIGURABLE SETTINGS | ||
|
Function |
Label |
Position |
|
Monitor type select color |
JP1 |
Pins 1 & 2 closed |
|
Monitor type select monochrome |
JP1 |
Pins 2 & 3 closed |
|
Parallel port LPT1 enabled |
JP2 |
Open |
|
Parallel port LPT2 enabled |
JP2 |
Closed |
|
Parallel port enabled |
JP3 |
Closed |
|
Parallel port disabled |
JP3 |
open |
|
INTERRUPT SELECTION | ||
|
IRQ |
JP4 |
JP5 |
|
IRQ5 |
Closed |
Open |
|
IRQ7 |
Open |
Closed |
|
|
|
|
 |
|
