DIT5740 (SDRAM) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / C-D / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
DIT5740 (SDRAM) video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
DATAEXPERT CORPORATION
DIT5740 (SDRAM)
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
8MB SDRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
AGP |
|

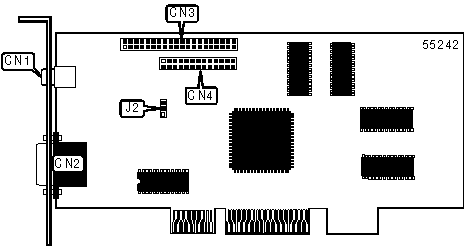

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
TV out connector |
CN1 |
VMI connector |
CN3 |
|
15-pin analog video port |
CN2 |
Feature connector (VGA/VESA) |
CN4 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
PAL |
J2 |
Pins 1 & 2 closed |
|
NTSC |
J2 |
Pins 2 & 3 closed | |
|
SDRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
8MB |
(4) 1MB x 16 |
|
|
|
|
 |
|
