CHAINTECH COMPUTER COMPANY, LTD.
GP-5464
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Video Memory |
4MB |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|

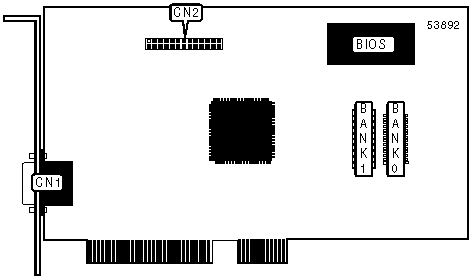

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin video analog video port |
CN1 |
Feature connector |
CN2 |
|
VIDEO MEMORY CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(1) 2M x 9 |
None |
|
4MB |
(1) 2M x 9 |
(1) 2M x 9 |
|
Note: Bank 0 is factory installed and is not configurable. | ||
|
|
|
|
 |
|
