CHAINTECH COMPUTER COMPANY, LTD.
GP-1600
|
Card Type |
Video card |
|
Video Chip Set |
IIT |
|
Maximum Video Memory |
2MB VRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768 |
|
Data Bus |
32-bit PCI |
|

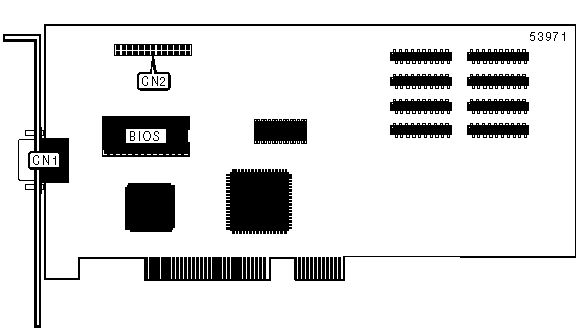

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
|
|
|
 |
|
