CIRRUS GD543X video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
CARDEXPERT TECHNOLOGY, INC.
CIRRUS GD543X
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic CL-GD 543X |
|
Highest Resolution Supported |
1280 x 1024 |
|
Maximum Video Memory |
2MB DRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|

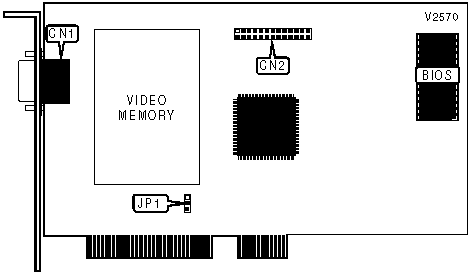

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
IRQ2 disabled |
JP1 |
Pins 2 & 3 closed |
|
IRQ2 enabled |
JP1 |
Pins 1 & 2 closed | |
|
DRAM CONFIGURATION |
|
Note:The size, location and configuration of the DRAM is unidentified. |
|
|
|
|
 |
|
