PCI-V264GT video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PCI-V264GT video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASUS COMPUTER INTERNATIONAL
PCI-V264GT
|
Card Type |
Video card |
|
Video Chip Set |
ATI Technologies, Inc. |
|
Maximum Video Memory |
2MB EDO DRAM |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600x1200 |
|
Data Bus |
32-bit PCI |
|

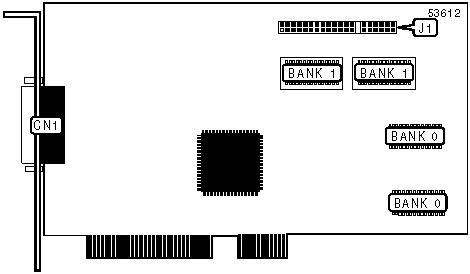

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Proprietary connector (AMC) |
J1 |
|
VIDEO MEMORY CONFIGURATION (VRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 512KB |
None |
|
2MB |
(2) 512KB |
(2) 512KB |
|
|
|
|
 |
|
