ASUS COMPUTER INTERNATIONAL
PCI-V264GT/PLUS
|
Card Type |
Video card |
|
Video Chip Set |
ATI Technologies, Inc. |
|
Maximum Video Memory |
4MB SGRAM |
|
Video Types Supported |
VGA, XVGA |
|
Highest Resolution Supported |
1600x1200 |
|
Data Bus |
32-bit PCI |
|

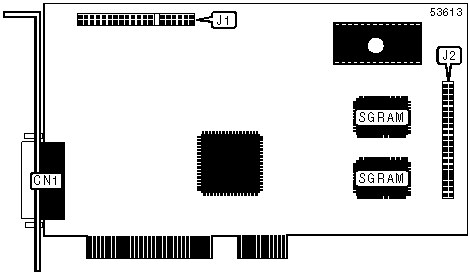

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Connector to 2MB upgrade board |
J2 |
|
Proprietary connector (AMC) |
J1 | ||
|
MEMORY CONFIGURATION (SGRAM) | ||
|
Size |
Mainboard |
Upgrade board |
|
2MB |
2MB |
N/A |
|
4MB |
2MB |
2MB |
2MB Upgrade Board
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unidentified |
J1 |
Unidentified |
J2 |
|
|
|
|
 |
|
