ASUS COMPUTER INTERNATIONAL
3DP-V375DX
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
4MB EDO DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus |
32-bit PCI |
|

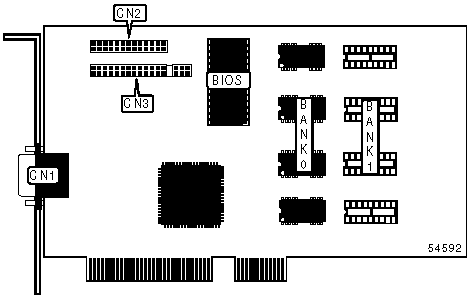

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Video port |
CN1 |
16-bit LPB connector |
CN3 |
|
8-bit LPB & feature connector |
CN2 | ||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
2MB |
(4) 256KB x 16 |
None |
|
4MB |
(4) 256KB x 16 |
(4) 256KB x 16 |
|
|
|
|
 |
|
