AGP-V3000ZXTV video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
AGP-V3000ZXTV video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ASUS COMPUTER INTERNATIONAL
AGP-V3000ZXTV
|
Card Type |
Video card |
|
Video Chip Set |
ST/n Vidia Riva 128 |
|
Maximum Video Memory |
8MB |
|
Video Types Supported |
Unidentified |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
AGP |
|

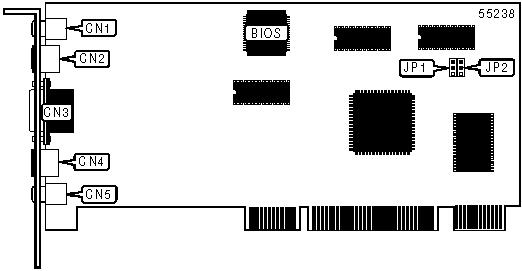

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Composite (RCA) in |
CN1 |
S - video out |
CN4 |
|
S - video in |
CN2 |
Composite (RCA) out |
CN5 |
|
Video out |
CN3 | ||
|
TV OUT FORMAT SELECTION | ||
|
Format |
JP1 |
JP2 |
|
NTSC |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
|
PAL |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
|
|
|
 |
|
