AST RESEARCH, INC.
AST VGA (202249-001)
|
Category |
Video |
|
Video Types Supported |
VGA |
|
Video Processor |
Western Digital |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus Type |
8-bit ISA |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
256KB |
|

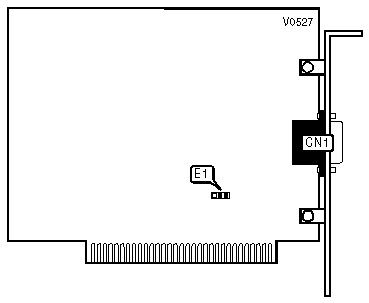

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
MONITOR TYPE | ||
|
Type |
E1 | |
| » |
Analog or VGA |
Pins 1 & 2 closed |
|
Multi-frequency |
Pins 2 & 3 closed | |
|
|
|
|
 |
|
