NETVISION 2000 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
NETVISION 2000 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||

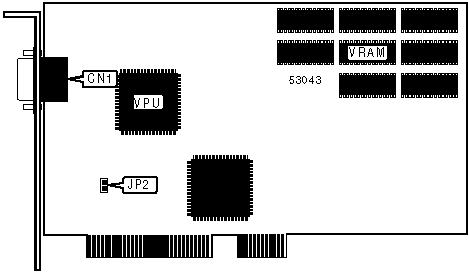

ARTIST GRAPHICS
NETVISION 2000
|
Card Type |
Video card |
|
Video Chipset |
Artist Graphics ARTIST 3GA |
|
Maximum Video Memory |
2MB VRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|
CONNECTIONS | |
|
Function |
Label |
|
15-pin analog video out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
VGA BIOS enabled |
JP2 |
Open |
|
VGA BIOS disabled |
JP2 |
Closed | |
|
|
|
|
 |
|
