AQUARIUS SYSTEMS, INC
VGA-OP264A
|
Category |
Video Card |
|
Video Types Supported |
XVGA |
|
Video Processor |
OPTI |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|

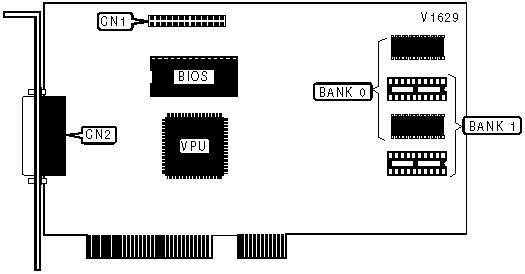

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
VGA feature connector |
CN1 |
15-pin analog video port |
CN2 |
|
DRAM | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
None |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
|
|
|
|
 |
|
