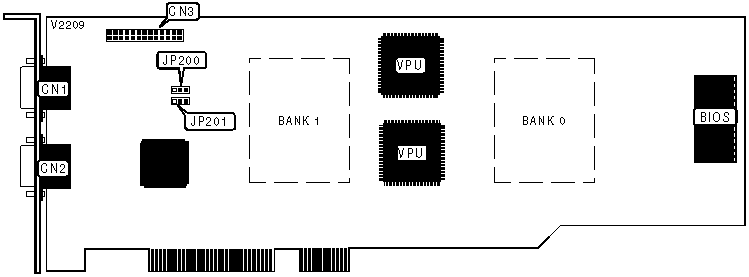

JERONIMO J2 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
JERONIMO J2 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
APPIAN TECHNOLOGY
JERONIMO J2
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Highest Resolution Supported |
1280 x 1024 |
|
Maximum Video Memory |
8MB DRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
VESA feature connector |
CN3 |
|
15-pin analog video port |
CN2 | ||
|
FIX BIOS CONFIGURATION | |||
|
Setting |
JP200 |
JP201 | |
| » |
Disabled |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Enabled |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
Note: The FIX BIOS setting should only be used when BIOS problems exist. It permits graphics chips on the adapter to be addressed differently. | |||
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
4MB |
4MB |
None |
|
8MB |
4MB |
4MB |
|
Note: The exact chip size is unidentified. | ||
|
|
|
|
 |
|
