RENDITION IIE video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
RENDITION IIE video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
APPIAN TECHNOLOGY
RENDITION IIE
|
Card Type |
Video card |
|
Video Chip Set |
Texas Instruments |
|
Maximum Video Memory |
1MB VRAM,512K DRAM |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
1024 x 768, |
|
Data Bus |
16-bit ISA |
|

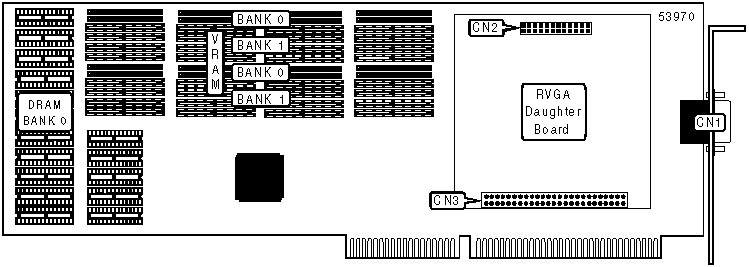

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
RVGA daughterboard connector |
CN3 |
|
Pass-through connector |
CN2 | ||
|
DRAM CONFIGURATION | |
|
Size |
Bank 0 |
|
0KB |
None |
|
512KB |
(16) 32KB |
|
VIDEO MEMORY CONFIGURATION (VRAM) | ||
|
Size |
Bank 0 |
Bank 1 |
|
512KB |
(16) 32KB |
None |
|
1MB |
(16) 32KB |
(16) 32KB |
|
|
|
|
 |
|
