AMPRO COMPUTERS, INC.
MINIMODULE/SVG-II
|
Card Type |
Video card |
|
Video Chip Set |
Cirrus Logic |
|
Maximum Video Memory |
1MB |
|
Data Bus |
PC/104 |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|

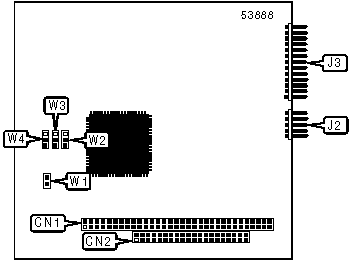

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
PC/104 connector |
CN1 |
Analog video connector |
J2 |
|
PC/104 connector |
CN2 |
Feature connector |
J3 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Factory configured – do not alter |
W1 |
Unidentified |
|
DRAM CONFIGURATION |
|
Note: 512KB is factory installed and is not configurable. The location is unidentified. 1MB is available through special order. |
|
BUS SELECTION | |||
|
Bus |
W2 |
W3 |
W4 |
|
8-bit |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
16-bit |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
|
|
|
 |
|
