ALARIS, INC.
SKYEAGLE VLB
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
2MB RAM |
|
Data Bus |
32-bit VESA Local Bus |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1280 x 1024 |
|

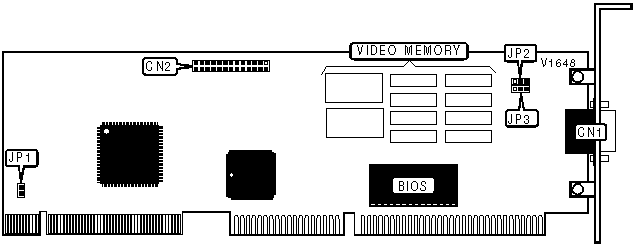

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
IRQ9 enabled |
JP1 |
Closed |
|
IRQ9 disabled |
JP1 |
Open | |
| » |
VLB write wait state is the same as the mother board |
JP2 |
Pins 1 & 2 closed |
|
VLB write wait state 1 |
JP2 |
Pins 2 & 3 closed | |
| » |
VLB read wait select state 1 |
JP3 |
Pins 2 & 3 closed |
|
VLB read wait select state 2 |
JP3 |
Pins 1 & 2 closed | |
|
VRAM CONFIGURATION |
|
Note: The exact memory configuration is unidentified. |
|
|
|
|
 |
|
