AIMS LAB, INC
VIDEOHIGHWAY XTREME
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
32-bit PCI |
|

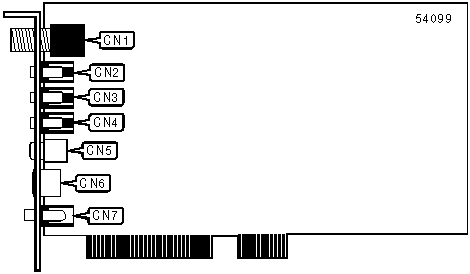

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
TV antenna in |
CN1 |
Composite video in |
CN5 |
|
Radio antenna in |
CN2 |
S-video in |
CN6 |
|
Line out |
CN3 |
DC power out |
CN7 |
|
Line in |
CN4 | ||
|
|
|
|
 |
|
