VIDEOHIGHWAY TV video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
AIMS LAB, INC
VIDEOHIGHWAY TV
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
Unidentified |
|
Data Bus |
8-bit ISA |
|

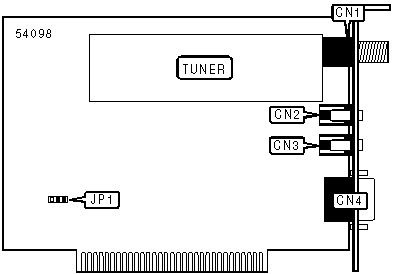

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
TV antenna out |
CN1 |
Line out |
CN3 |
|
Line in |
CN2 |
15-pin analog video port |
CN4 |
|
BASE I/O ADDRESS SELECTION | ||
|
Setting |
JP1 | |
| » |
36Fh |
Pins 1 & 2 closed |
|
26Fh |
Pins 2 & 3 closed | |
|
|
|
|
 |
|
