ZUCKERBOARD MONOCHROME DISPLAY HALF-CARD video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADVANCED TRANSDUCER DEVICES
ZUCKERBOARD MONOCHROME DISPLAY HALF-CARD
|
Card Type |
Parallel/Video card |
|
Video Chip Set |
Unidentified |
|
Highest Resolution Supported |
720 x 348 |
|
Maximum Video Memory |
Unidentified |
|
Data Bus |
8-bit ISA |
|
Video Types Supported |
Monochrome |
|

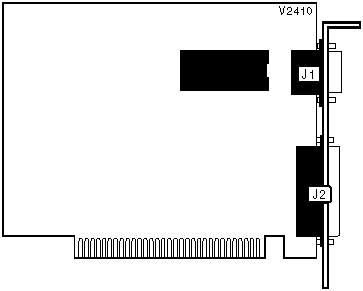

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
J1 |
25-pin parallel port |
J2 |
|
|
|
|
 |
|
