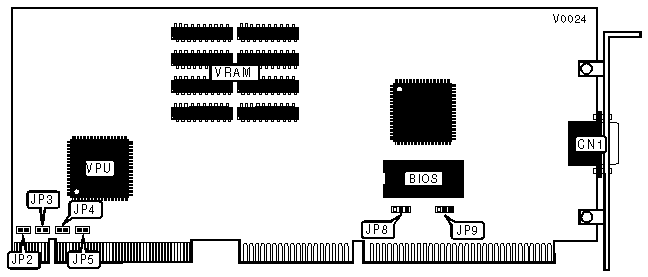

STAR2000 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
STAR2000 video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ADVANCED INTEGRATION RESEARCH, INC.
STAR2000
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
P9000 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2048KB |
|
CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog video port |
CN1 |
|
INTERRUPT SELECTION | ||
|
IRQ 2/9 |
JP8 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
Pins 2 & 3 closed | |
|
ZERO WAIT STATE SELECTION | ||
|
Setting |
JP9 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
PROTECTED MODE ADDRESS SELECTION | |||||
|
Address |
JP2 |
JP3 |
JP4 |
JP5 | |
| » |
E000h |
Closed |
Open |
Open |
Open |
|
C000h |
Closed |
Closed |
Open |
Open | |
|
D000h |
Open |
Closed |
Open |
Open | |
|
F000h |
Open |
Open |
Open |
Open | |
|
|
|
|
 |
|
