PROSTAR video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PROSTAR video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACTIX SYSTEMS, INC.
PROSTAR
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
CL5428 |
|
Highest Resolution Supported |
1024 X 768 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
1024KB |
|

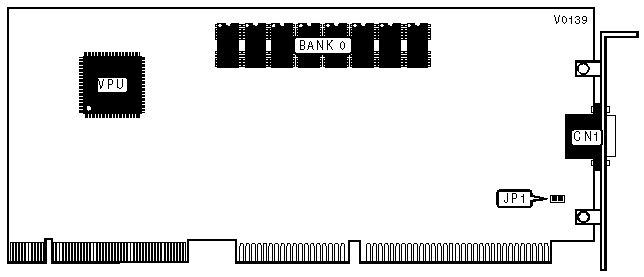

CONNECTIONS | |
|
Purpose |
Location |
|
15-pin analog port |
CN1 |
|
VIDEO INTERRUPT CONFIGURATION | ||
|
IRQ 2/9 |
JP1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
|
|
|
 |
|
