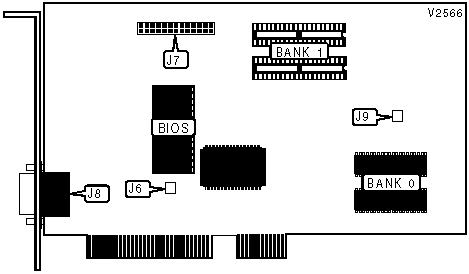

PICASSO 64+ AV video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
Articles / TULARC / PC info / Video Cards / A-B / | |
|
|
||||
|
|
|||
|
|
|||
|
||||
|
|
||||
|
|
|
||
|
PICASSO 64+ AV video card Settings and Configuration |
|
||
|
||||
|
|
|
||
|
||||
|
|
|
|
||
|
||
|
|
|
|
||
|
|
||
|
||
|
|
|
|
||
|
||
ACTIX SYSTEMS, INC.
PICASSO 64+ AV
|
Card Type |
Video card |
|
Video Chip Set |
IGS IGA1682 chip |
|
Highest Resolution Supported |
1024 x 768 |
|
Maximum Video Memory |
2MB DRAM |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
J7 |
15-pin analog video port |
J8 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256KB x 16 |
None |
|
2MB |
(2) 256KB x 16 |
(2) 256KB x 16 |
|
MISCELLANEOUS TECHNICAL NOTE |
|
Note: The configuration of J6 and J9 is unidentified. |
|
|
|
|
 |
|
