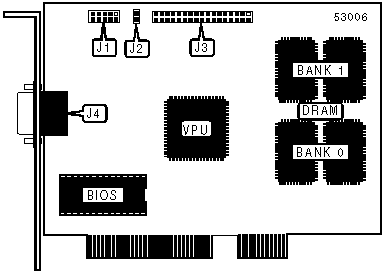

ACT ATTRACTIVE COMPUTER TECHNOLOGY CORPORATION
S3-765
|
Card Type |
Video card |
|
Video Chipset |
S3 86C765 |
|
Maximum Video Memory |
2MB DRAM (EDO optional) |
|
Data Bus |
32-bit PCI |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Unidentified |
J1 |
15-pin analog video out |
J4 |
|
LPB bus |
J3 | ||
|
USER CONFIGURABLE SETTINGS | ||
|
Setting |
Label |
Position |
|
IRenabled |
J2 |
Closed |
|
IRdisabled |
J2 |
Open |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
None |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
|
|
|
|
 |
|
