ACHME COMPUTERS, INC.
MS-4401 PCI VGA CARD
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Advanced Logic |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
PCI bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2048KB |
|

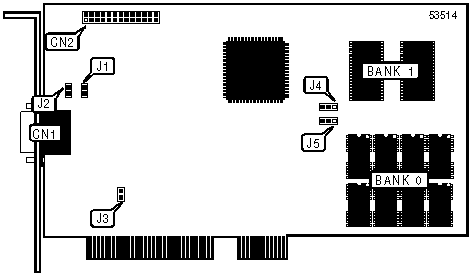

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
J4 |
J5 |
|
1MB |
(8) 44256 |
NONE |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
2MB |
(8) 44256 |
(2) 16256 |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Note:16256 chips must be installed by the manufacturer. | ||||
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
J1 |
Closed |
|
J2 |
Open |
|
J3 |
Open |
|
|
|
|
 |
|
